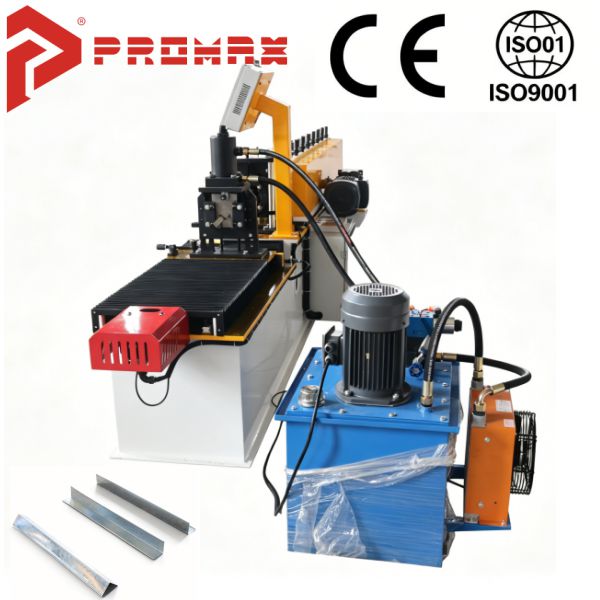

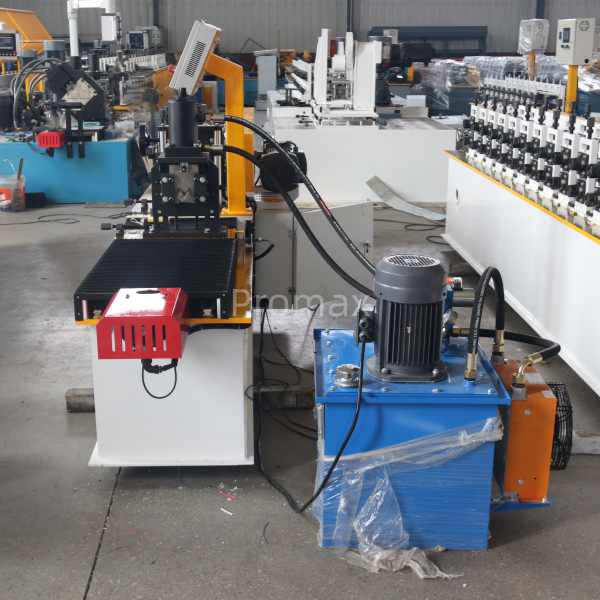

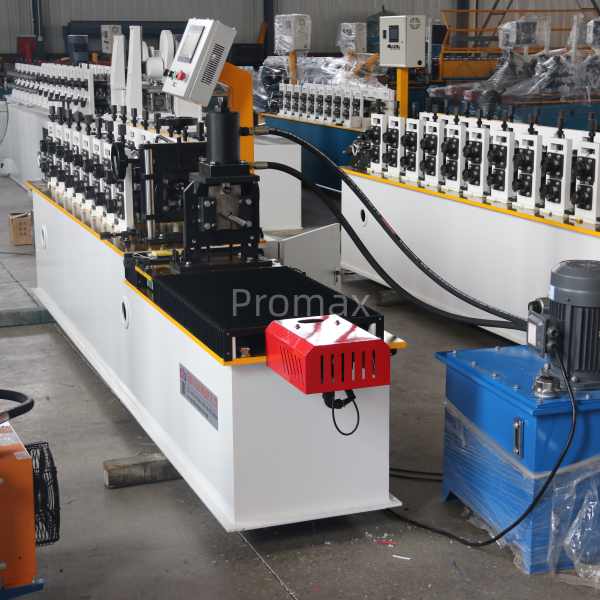

Revolutionize your structural steel production with our state-of-the-art Angle Steel Roll Forming Machine. This heavy-duty manufacturing line is meticulously built to process high-tensile galvanized metal into perfectly squared L-profiles and perimeter trims. Featuring a reinforced chassis and progressive hardened-steel rollers, the system guarantees superior straightness while eliminating material twist or springback. Driven by a smart PLC control terminal, it effortlessly synchronization material feeding, precise rolling, and high-speed hydraulic cutting. It is the definitive hardware asset for factories looking to scale up contract fulfillment and secure long-term industrial profitability.
Features

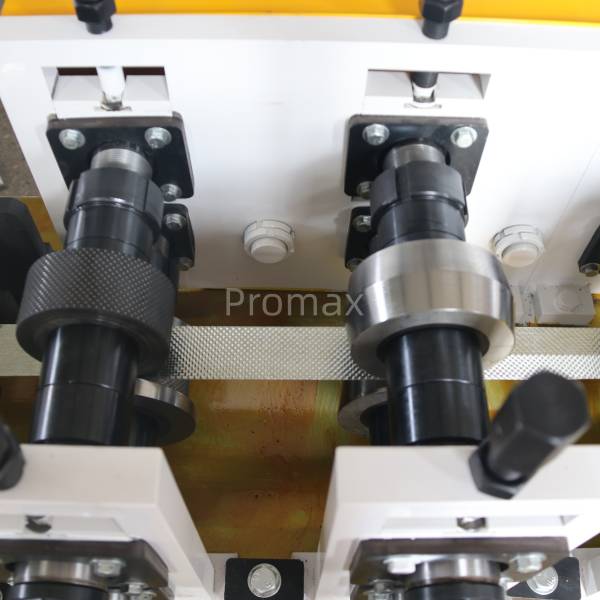

Progressive Geometric Calibration. Equipped with specialized multi-stage hardening rollers that shape 90-degree metal angles gradually. This meticulous forming process prevents material cracking and stress fractures, ensuring a flawless surface finish along every linear meter.

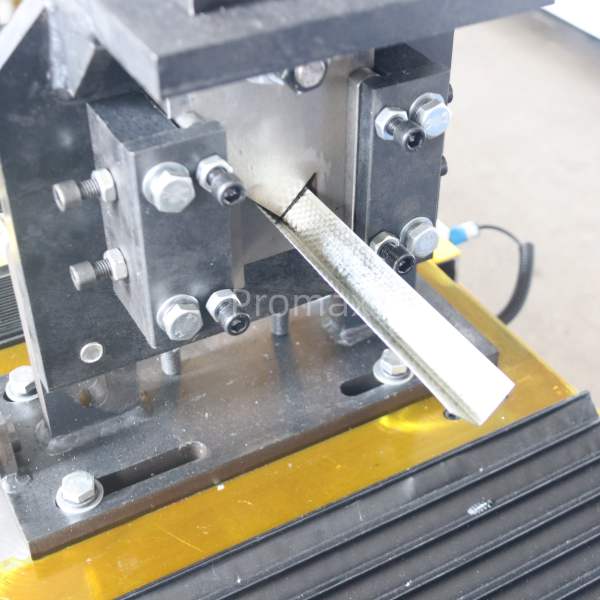

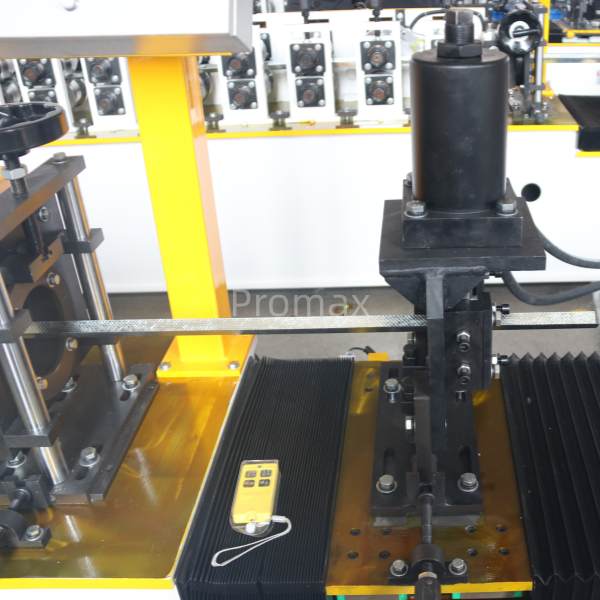

Heavy-Duty Hydraulic Cut-Off.Features a synchronized post-cutting mechanism with custom-profiled alloy blades. The system delivers razor-sharp, burr-free cuts at high speeds, significantly reducing post-production edge grinding and secondary labor costs.
Smart PLC Length Configuration.Integrated with an intuitive touchscreen control interface that allows operators to program batch volumes and variable cut lengths instantly, maximizing material yield with absolute dimensional repeatability.
| Raw material | GI/GL |
| Thickness | 0.3~1.0mm |
| Roller material | Gr12 |
| Shafts material | 45# steel |
| Cutting type | Hydraulic cutting |
| Material of cutting blade | Cr12Mov,quenched treatment 58℃-62℃ |
| Control system | PLC |
| Voltage | 220V/380/440V |
| Forming Speed | 0~80m/min |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
Rich Experience: We serve 150 countries and regions worldwide, with over 20,000 customers served.
Certified Excellence: Triple-certified by CE, UL, and ISO, ensuring seamless global market access.
Complete Support: Industry-leading 3D production maintenance system providing "One-Stop" integrated line solutions.
Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 30 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2 years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation？
A: One worker is engough, the machine use automatic PLC control system.
Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
Q: What's the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
Q: What's the delivery time?
A: 30 days after deposit receipt your payment
Q: Installation and training？
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the transportation and accommodation expenses.
