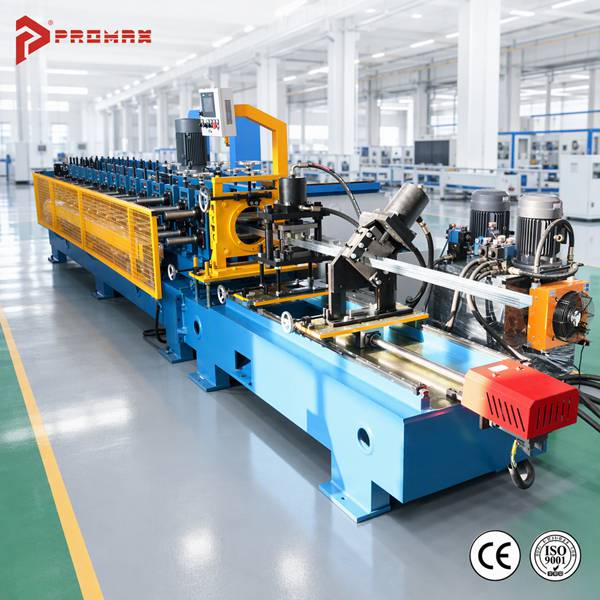

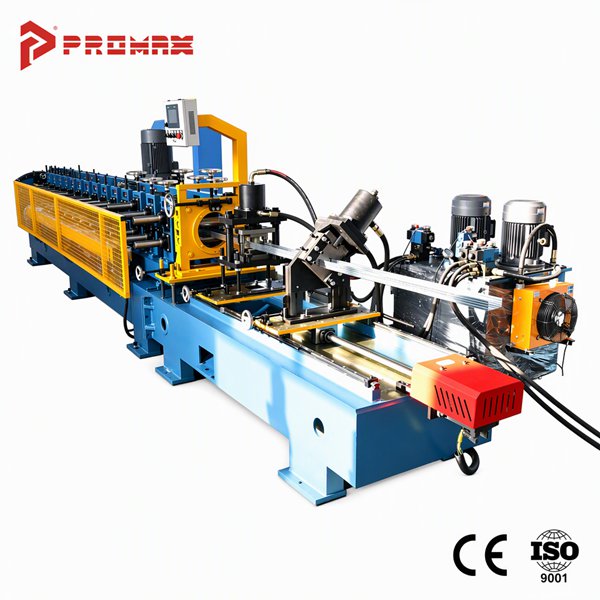

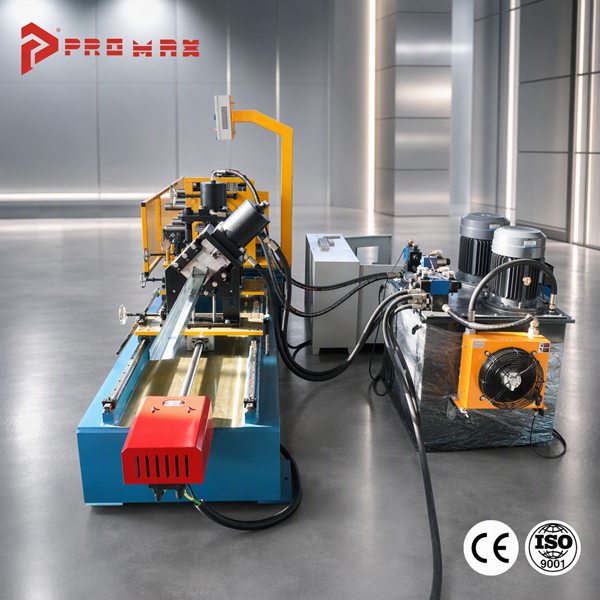

CU Stud & Track Roll Forming Machine

The Promax CU Stud & Track Roll Forming Machine is an industry-leading, fully automated industrial manufacturing solution engineered for the high-efficiency, continuous production of light gauge steel framing profiles. Specifically designed for drywall partitioning, ceiling suspension systems, and modular building construction, this advanced roll forming equipment integrates precision decoiling, sheet guiding, multi-station roll forming, high-speed hydraulic punching, and burr-free post-cutting into a synchronized, intelligent workflow.

Key Technical Features & Engineering Advantages:

High-Speed Continuous Automation: Achieves operating speeds up to 30–50 m/min powered by an advanced PLC computerized control system with a user-friendly touch screen, significantly reducing labor costs and cycle times.

Dual-Profile C & U Versatility: Engineered for seamless and rapid changeovers between C-stud and U-track profiles, accommodating diverse web widths, flange heights, and material thicknesses (0.4 mm to 1.2 mm) with minimal downtime.

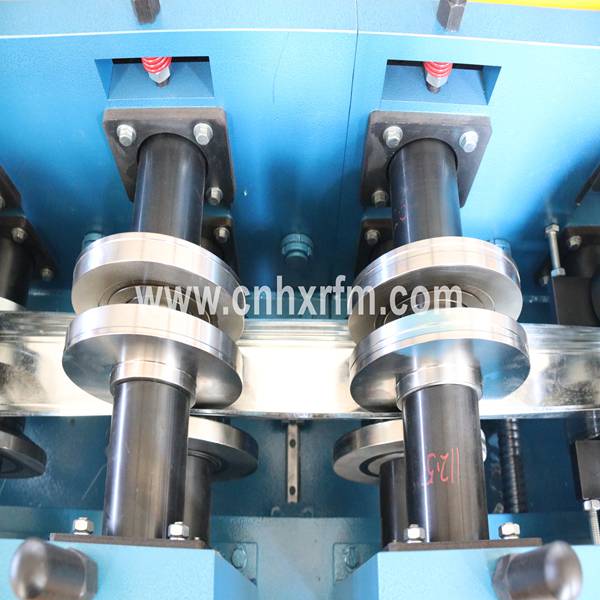

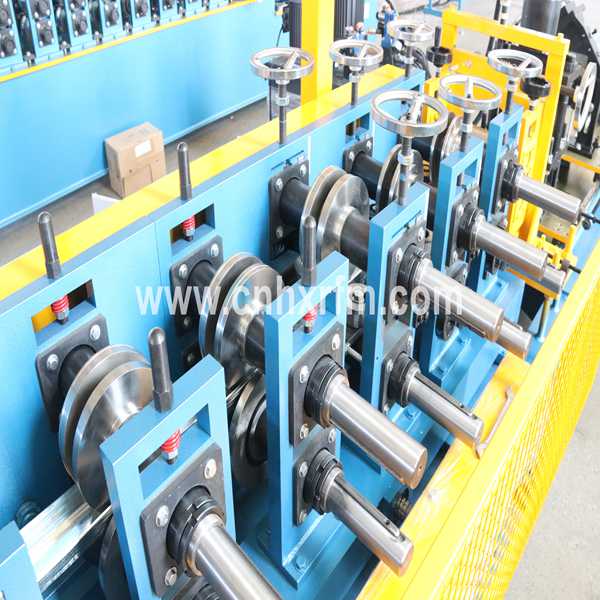

Superior Tooling Durability: Rollers are precision CNC machined from premium Cr12 / Cr12MoV forged alloy tool steel, vacuum quenched and hard-chrome plated to eliminate surface scratching on galvanized coils and extend service life.

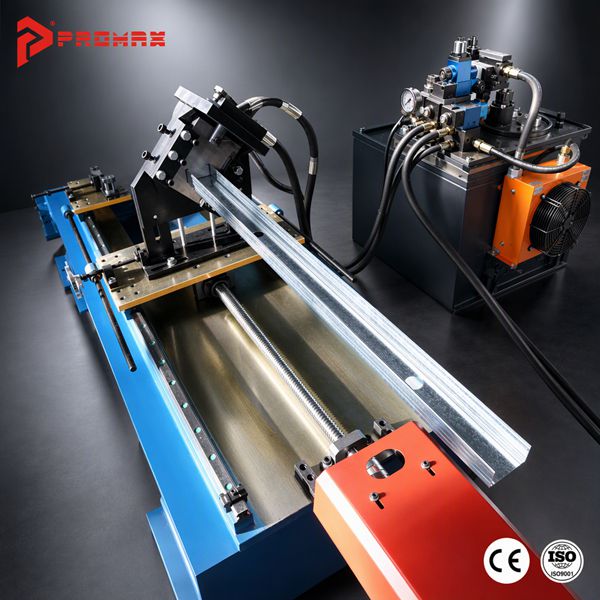

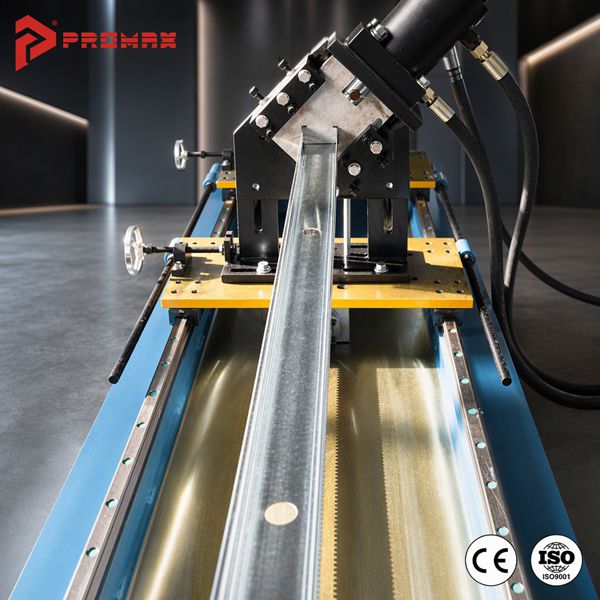

Integrated Servo Punching & Hydraulic Cutting: Features precision servo-driven punching units for utility conduit holes and high-strength hydraulic flying shear for clean, non-deformed profile ends without material waste.

Heavy-Duty Monolithic Chassis: Fabricated from thick, stress-relieved welded structural steel, the robust machine base eliminates mechanical vibration, ensuring tight dimensional tolerances (+/- 0.5 mm) during non-stop 24/7 manufacturing operations.

Industrial Applications:

As an essential roll forming asset for light gauge steel framing (LGSF) and drywall construction contractors, the Promax CU Stud & Track Roll Forming Machine produces standardized components for:

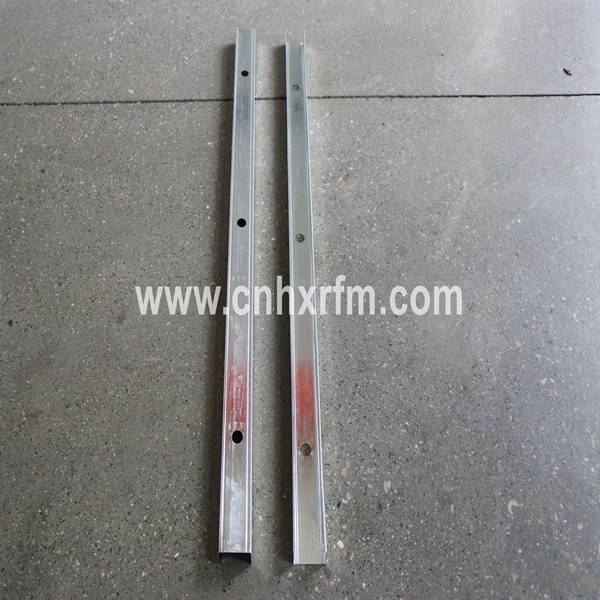

Interior drywall partition studs and track runners for residential and commercial construction

Acoustical ceiling grids, furring channels, and structural ceiling framing

Cold-formed steel wall panels, roof trusses, and modular building frames

Architectural facade framing and perimeter framing channels

Why Choose Promax Machinery?

Promax is a globally recognized B2B manufacturer specializing in custom cold roll forming technology. We deliver comprehensive turnkey production lines tailored to your exact technical profile drawings, factory dimensions, and output requirements. Backed by rigorous ISO9001/CE quality standards, global on-site commissioning, complete OEM/ODM engineering capabilities, and lifelong technical support with readily available spare parts, Promax provides steel profile manufacturers with unmatched return on investment and lower total cost of ownership. Get Factory-Direct Pricing & Technical Layouts: Contact the Promax engineering team today to receive a complete technical proposal, customized roll forming line layout, and competitive B2B quotation for the Promax CU Stud & Track Roll Forming Machine.
