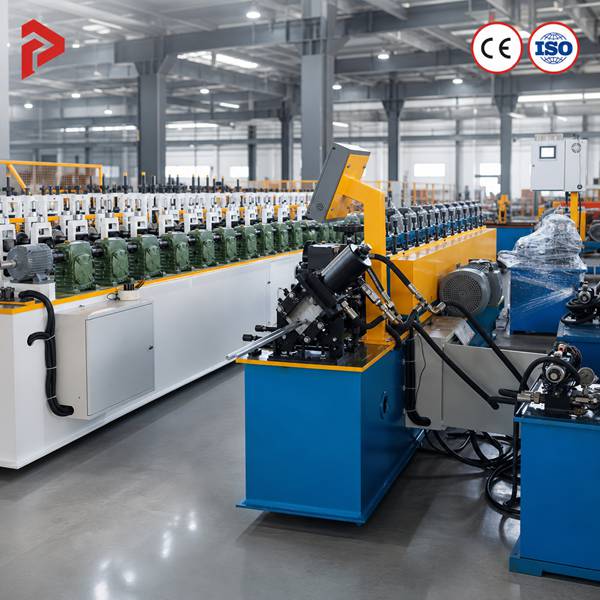

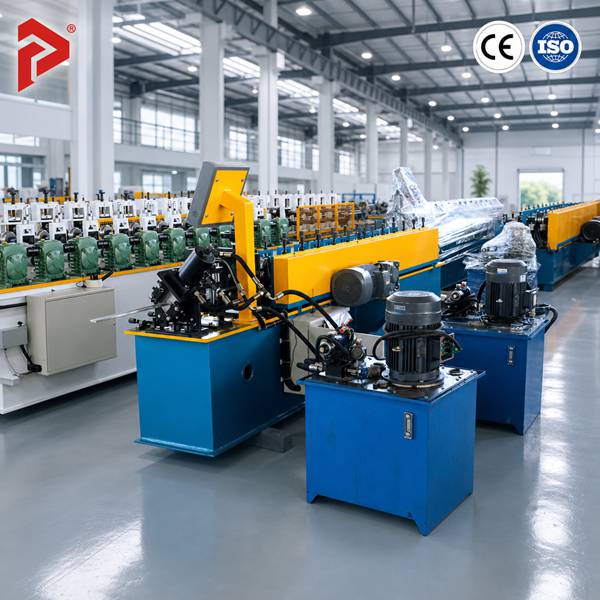

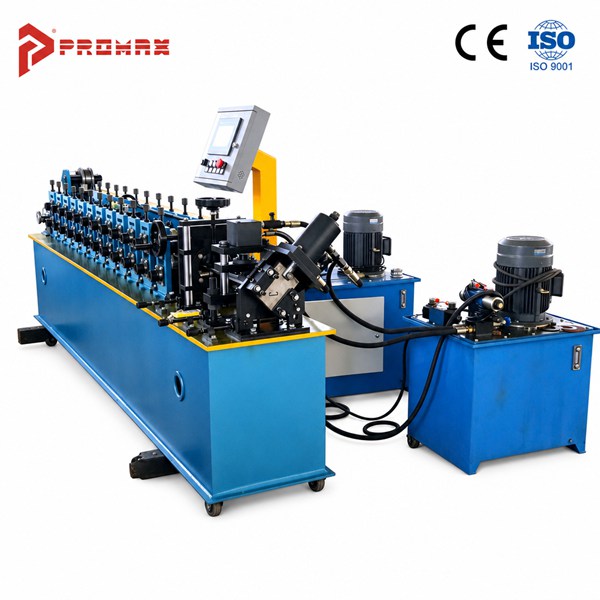

Promax Embossed Keel Roll Forming Machine

The Promax Embossed Keel Roll Forming Machine is an advanced, fully automated industrial manufacturing solution engineered for the high-efficiency production of knurled, dimpled, and embossed light gauge steel keels. Specifically designed for drywall partitioning, acoustical ceiling grids, and modular construction systems, this specialized roll forming equipment creates a uniform textured diamond or dot embossing pattern on galvanized steel sheets. The distinct embossed pattern significantly increases structural rigidity, enhances screw-holding grip, prevents screw slippage during installation, and improves acoustic damping properties.

Key Engineering Features & Technological Advantages:

Precision Embossing & Knurling Rollers: Features specialized knurling roller stations fabricated from high-hardness Cr12MoV forged alloy tool steel, precision CNC-carved and vacuum quenched (HRC 60-62) to create consistent, crisp embossing patterns without damaging zinc coatings.

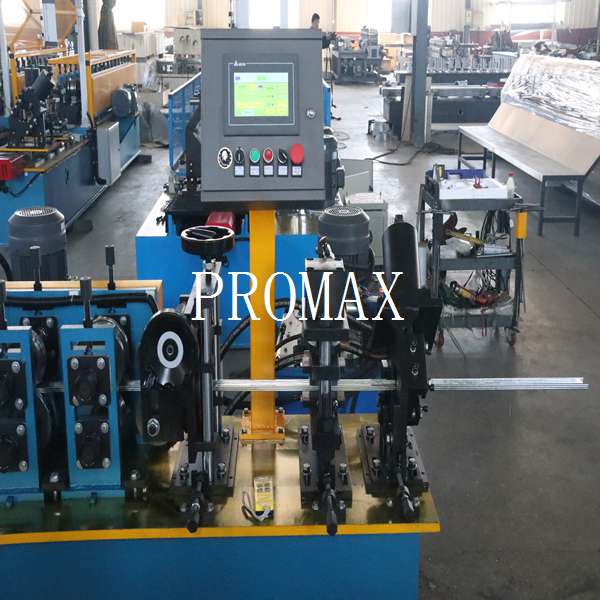

High-Speed Continuous Manufacturing: Delivers smooth, continuous line speeds of up to 35–50 m/min powered by an advanced PLC computerized control system with an intuitive HMI touchscreen interface.

Enhanced Structural Rigidity: The cold-formed embossing texture increases the mechanical yield strength of thin galvanized steel coils, allowing fabricators to reduce raw material thickness while maintaining superior load-bearing capacity.

Non-Slip Screw Fastening Performance: The textured surface prevents self-tapping drywall screws from sliding off during high-speed drywall installation, cutting contractors' installation time and labor costs.

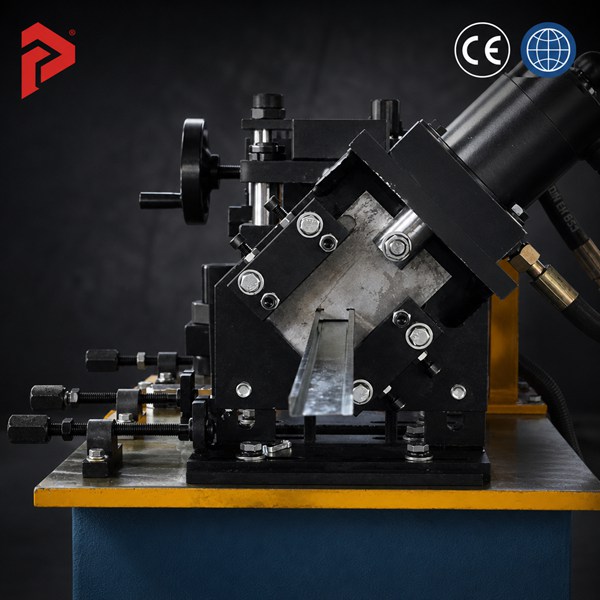

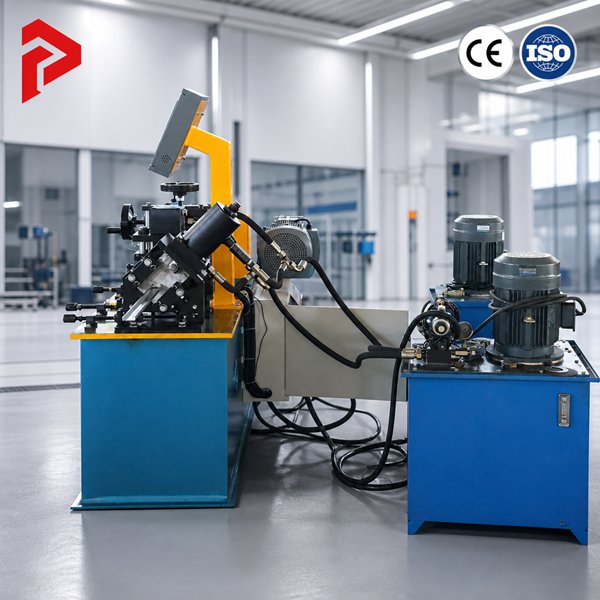

Servo-Driven Punching & Clean Flying Cut: Integrated multi-station servo hydraulic punching for utility pass-through holes, combined with high-precision hydraulic flying cutting for burr-free, non-deformed profile ends.

Rigid Monolithic Machine Base: Fabricated from heavy-duty stress-relieved welded structural steel, minimizing vibration and ensuring tight dimensional tolerances (+/- 0.5 mm) during non-stop 24/7 manufacturing operations.

Industrial Applications:

As an essential roll forming asset for drywall building material suppliers and light steel framing contractors, the Promax Embossed Keel Roll Forming Machine manufactures:

Embossed drywall partition C-studs, U-tracks, and wall channels

High-grip textured suspended ceiling main keels and cross tees

Acoustic drywall framing components with enhanced vibration damping

Light gauge steel framing members for commercial, residential, and modular buildings

Why Partner with Promax Machinery?

Promax is a globally recognized B2B manufacturer specializing in custom cold roll forming equipment. We provide complete turnkey production lines customized to your target keel drawings, factory dimensions, and capacity requirements. Backed by rigorous ISO9001/CE certifications, worldwide on-site commissioning, dedicated OEM/ODM engineering support, and reliable lifelong spare parts availability, Promax empowers building material manufacturers to maximize ROI and achieve superior product differentiation.

Request a Factory-Direct Technical Proposal: Contact the Promax engineering team today to receive comprehensive technical specifications, custom embossing pattern designs, and a competitive B2B quotation for the Promax Embossed Keel Roll Forming Machine.
