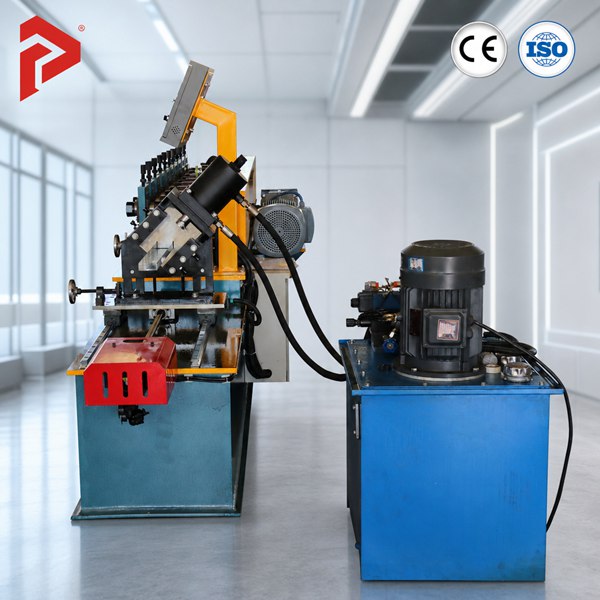

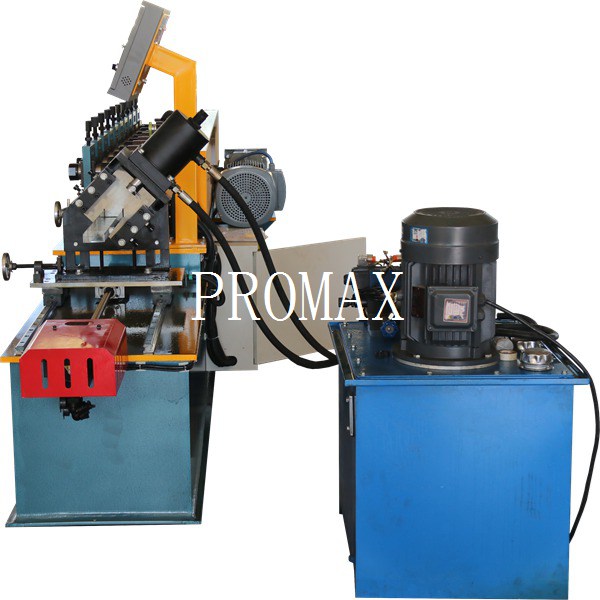

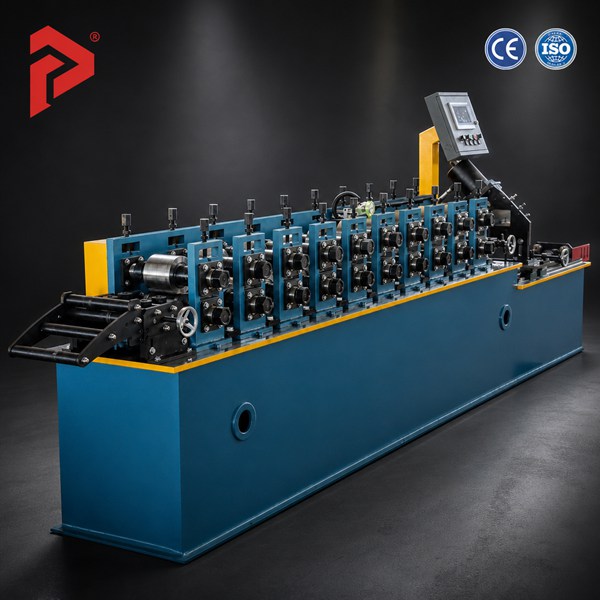

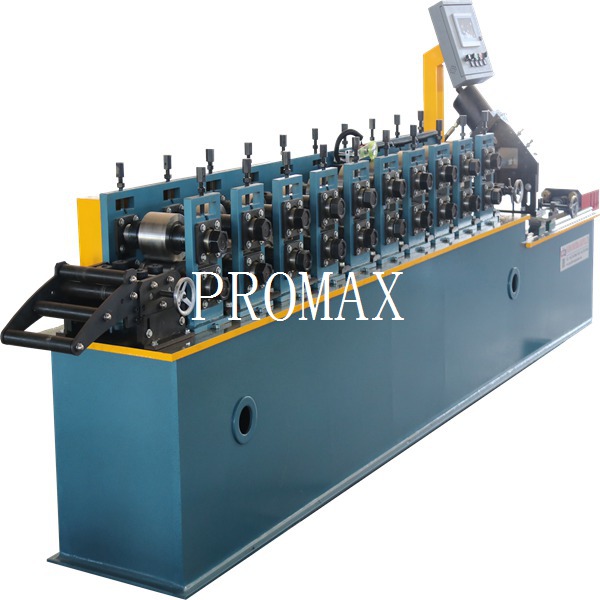

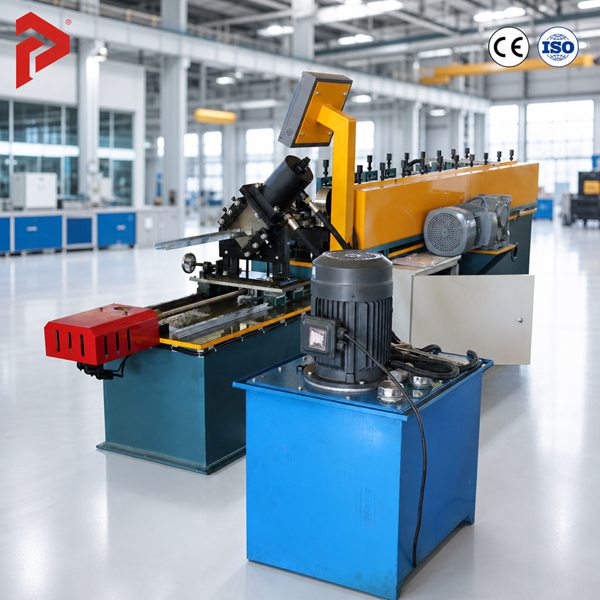

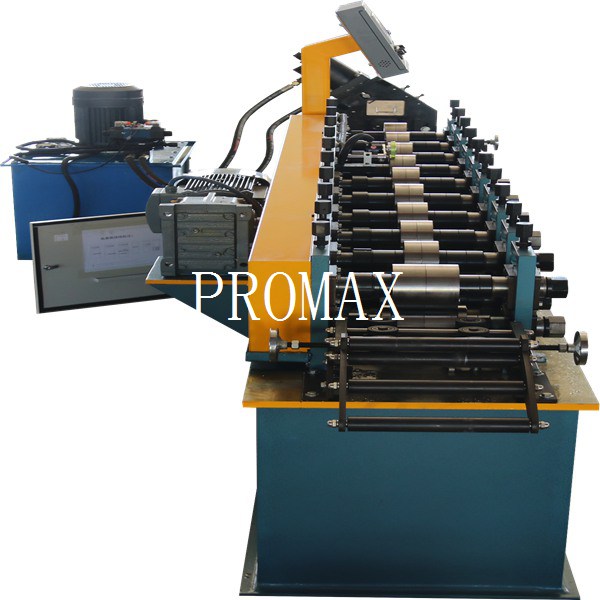

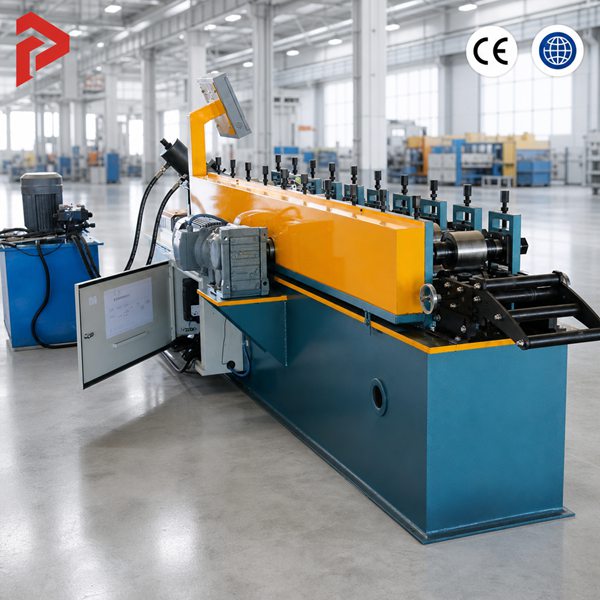

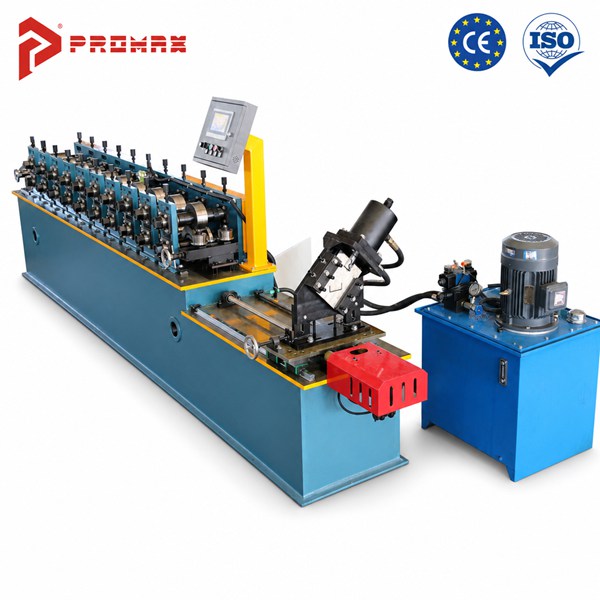

U Track Roll Forming Machine

The Promax U Track Roll Forming Machine is a specialized, fully automated industrial manufacturing solution engineered for the high-efficiency, continuous production of galvanized light gauge steel U-track runners and channel profiles. Designed to meet the stringent structural standards of drywall partition systems, floor/ceiling runner installations, and modular steel framing, this advanced roll forming equipment integrates precision decoiling, sheet guiding, multi-station cold roll forming, high-speed hydraulic punching, and burr-free post-cutting into a synchronized, intelligent workflow.

Key Technical Features & Engineering Advantages:

High-Speed Continuous Manufacturing: Operates at line production speeds of up to 35–55 m/min powered by an advanced computerized PLC control system with an intuitive multilingual HMI touchscreen, significantly reducing cycle times and operational labor costs.

Precision Roll Tooling Architecture: Forming rollers are precision CNC-machined from premium forged Cr12 / Cr12MoV alloy tool steel, vacuum quenched (HRC 58-62), and hard-chrome plated to guarantee flawless profile surfaces without scratching galvanized zinc coatings while extending tooling service life.

Integrated Servo-Driven Punching: Features high-precision servo hydraulic punching units for utility conduit holes, fastening slots, and customized knockout patterns with exceptional repeatability.

Clean Hydraulic Flying Shear: Equipped with an automated flying cutting mechanism that performs distortion-free, burr-free cuts without stopping the continuous line, completely eliminating raw material waste.

Heavy-Duty Vibration-Damping Base: Built on a monolithic, stress-relieved welded steel chassis that effectively absorbs mechanical vibrations, maintaining strict dimensional tolerances (+/- 0.5 mm) during non-stop 24/7 industrial manufacturing runs.

Industrial Applications:

As an essential roll forming asset for light steel framing (LSF) manufacturers and commercial drywall contractors, the Promax U Track Roll Forming Machine delivers standardized components for:

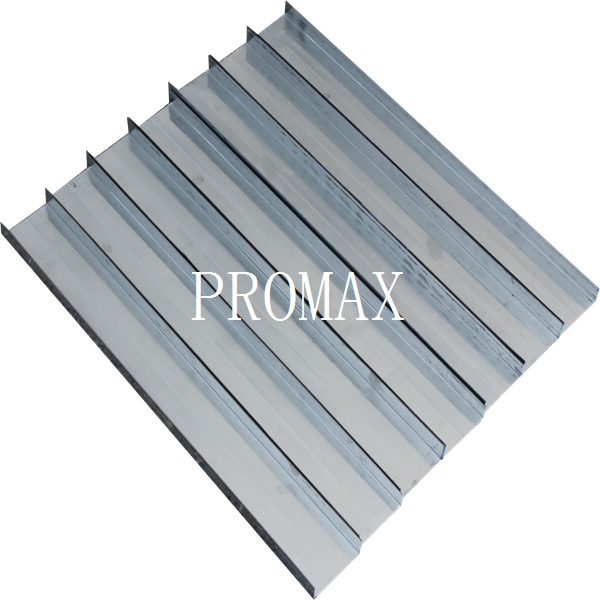

Floor and ceiling U-track runners for drywall partition systems in commercial and residential buildings

Deflection track and perimeter framing channels for acoustical suspended ceilings

Horizontal structural framing tracks for lightweight steel modular and prefabricated houses

Curtain wall backing tracks, bridging channels, and architectural structural supports

Why Partner with Promax Machinery?

Promax is a globally recognized manufacturer specializing in customized cold roll forming equipment. We provide complete turnkey B2B production lines tailored precisely to your specific U-track profile dimensions, factory layout, and capacity targets. Backed by stringent ISO9001/CE quality standards, global on-site installation and commissioning services, robust OEM/ODM engineering support, and reliable lifelong spare parts availability, Promax empowers building material manufacturers to maximize return on investment (ROI) and minimize unit manufacturing costs.

Request a Factory-Direct Technical Proposal: Contact the Promax engineering team today to receive detailed technical specifications, custom profile drawing evaluations, and competitive B2B factory pricing for the Promax U Track Roll Forming Machine.
